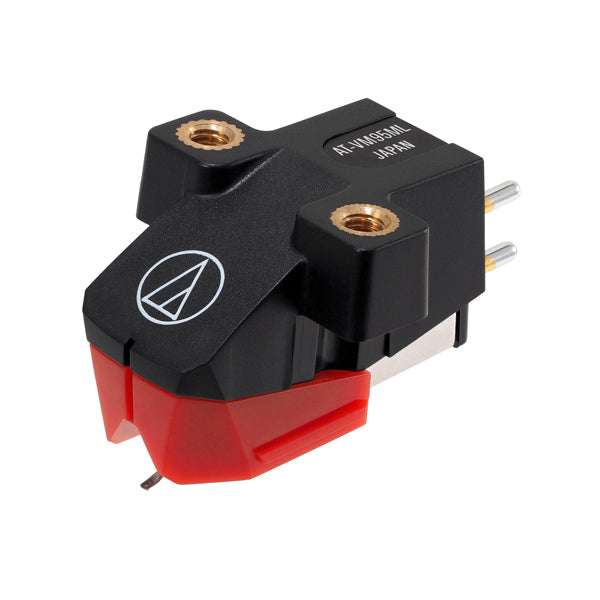

Audio-Technica AT-VM95ML
€169,00
Skip to product information
CARTRIDGE WITH MICROLINE® STYLUS
• Dual moving magnet
• MicroLine® stylus
• Frequency response: 20 - 25,000 Hz
• Tracking force: 1.8 – 2.2 g (standard 2 g)
Specifications
Type
VM Stereo Dual Magnet
Mounting
1/2” centres
Frequency response
20 - 25,000 Hz
Channel separation
23 dB (1 kHz)
Vertical tracking angle
23°
Stylus
Nude Square Shank
Recommended load impedance
47,000 Ω
Coil impedance
3.3 kΩ (1 kHz)
DC resistance
485 Ω
Coil inductance
550 mH (1 kHz)
Output voltage
3.5 mV (@ 1 kHz, 5 cm/sec)
Channel balance output
1.5 dB (1 kHz)
Stylus
Microlinear
Cantilever
Aluminum pipe
Static compliance
20 x 10 – 6 cm / dyne
Dynamic compliance
10 x 10 – 6 cm / dyne (100 Hz)
Dimensions
21.2 × 21.4 × 62.4 ( H x W x D mm)
Model
AT-VM95ML
Recommended load capacitance
100-200 pF
Replacement stylus
AT-VMN95ML
Stylus size
2.2 x 0.12 mil
Weight
15.5 g
